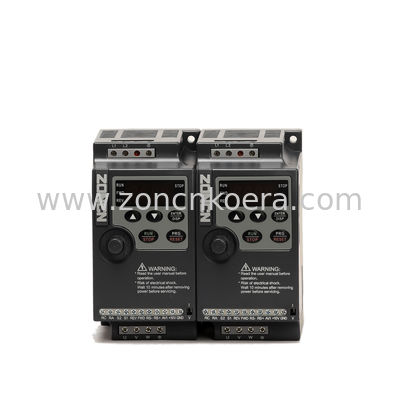

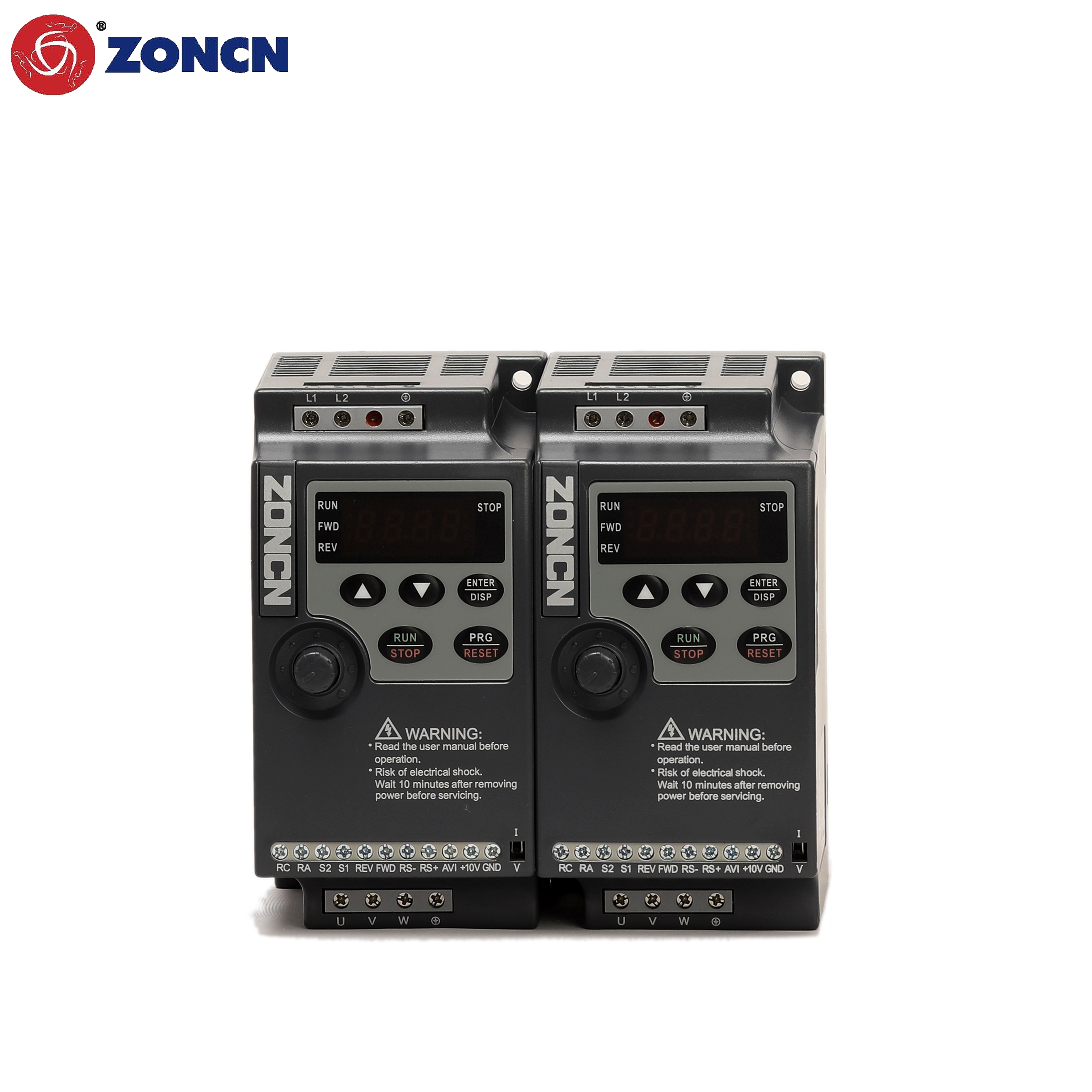

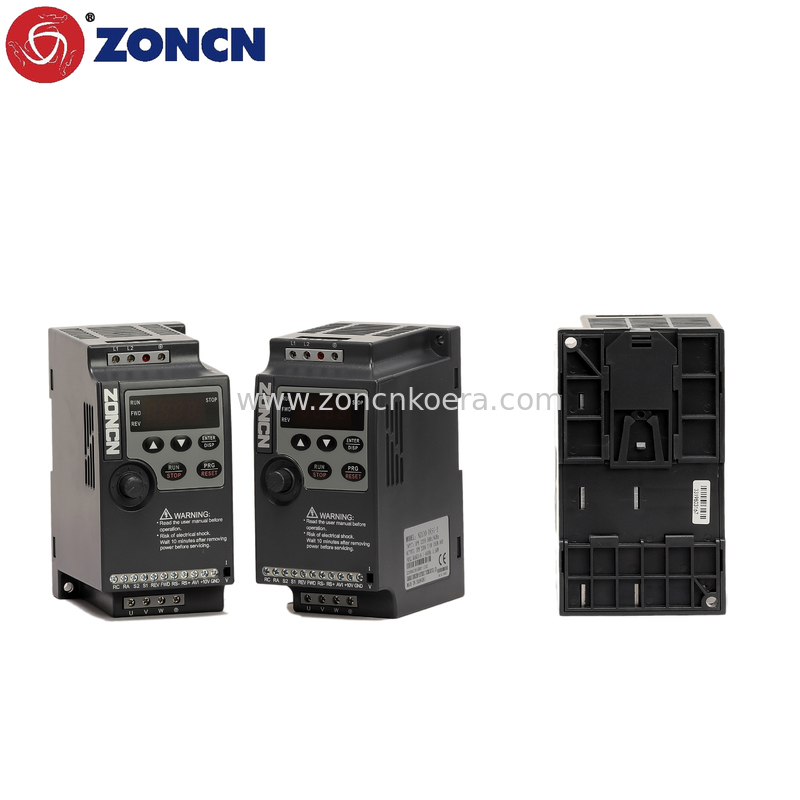

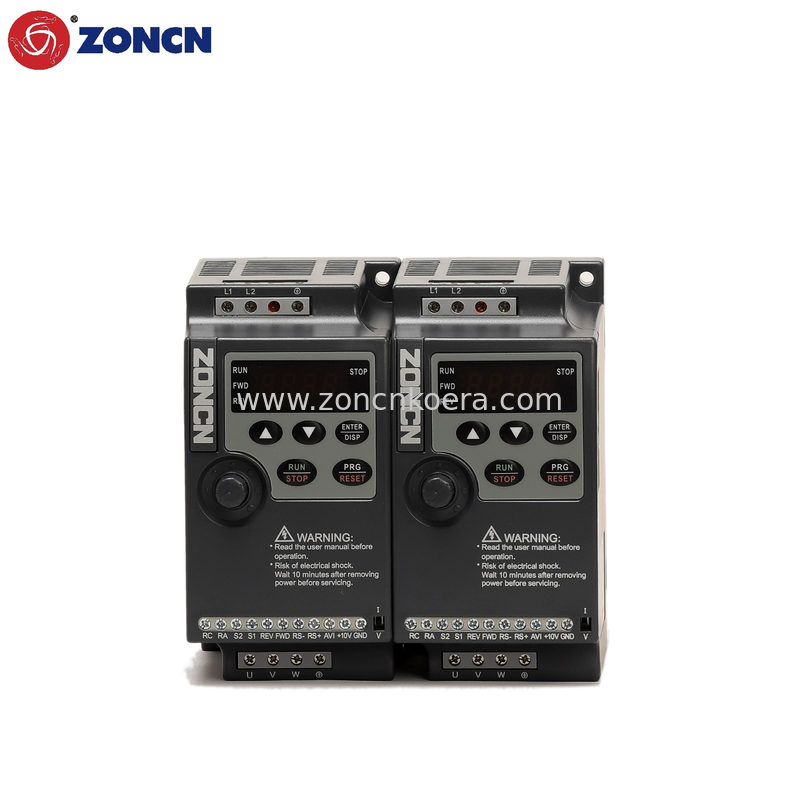

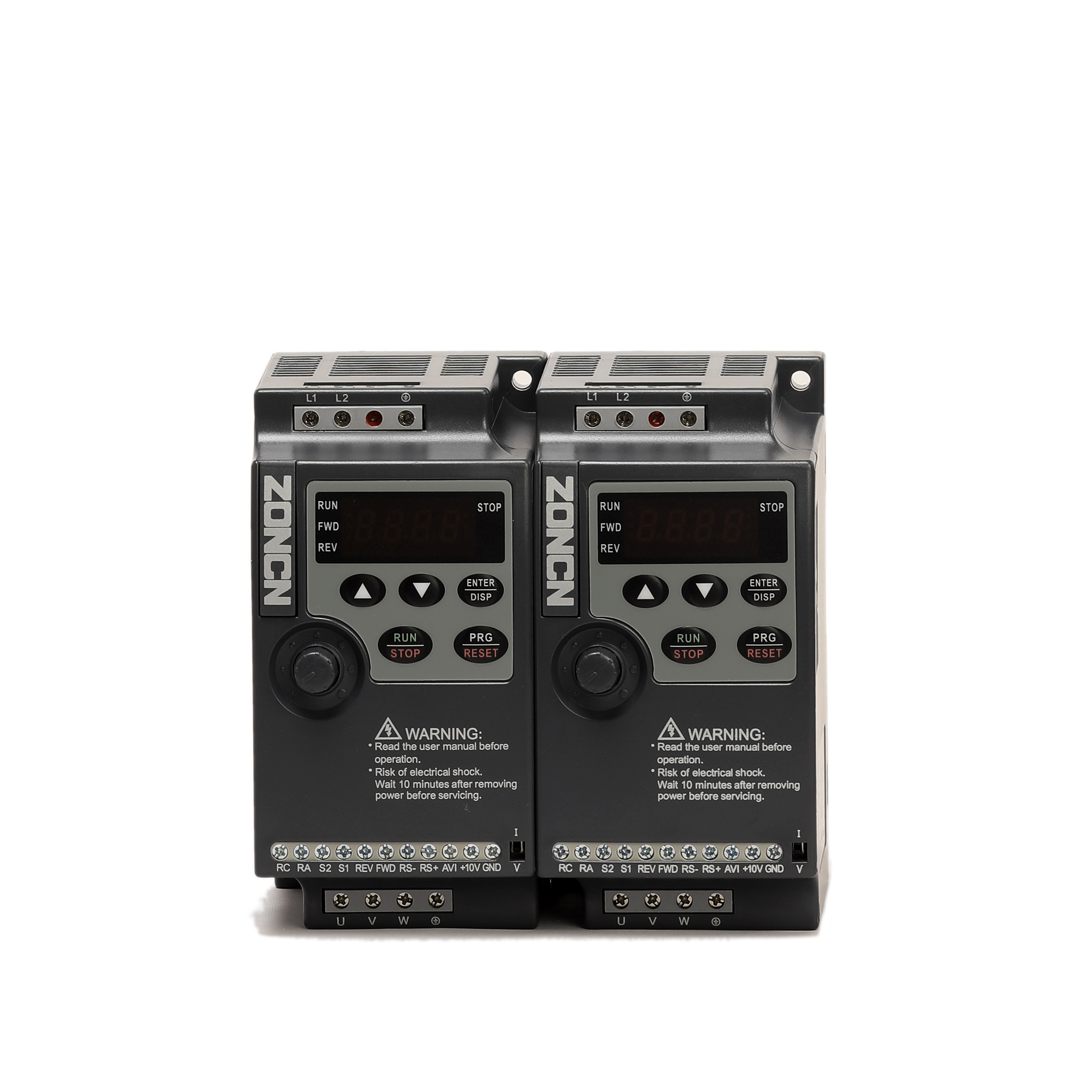

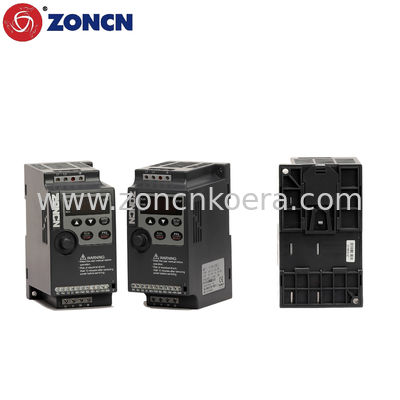

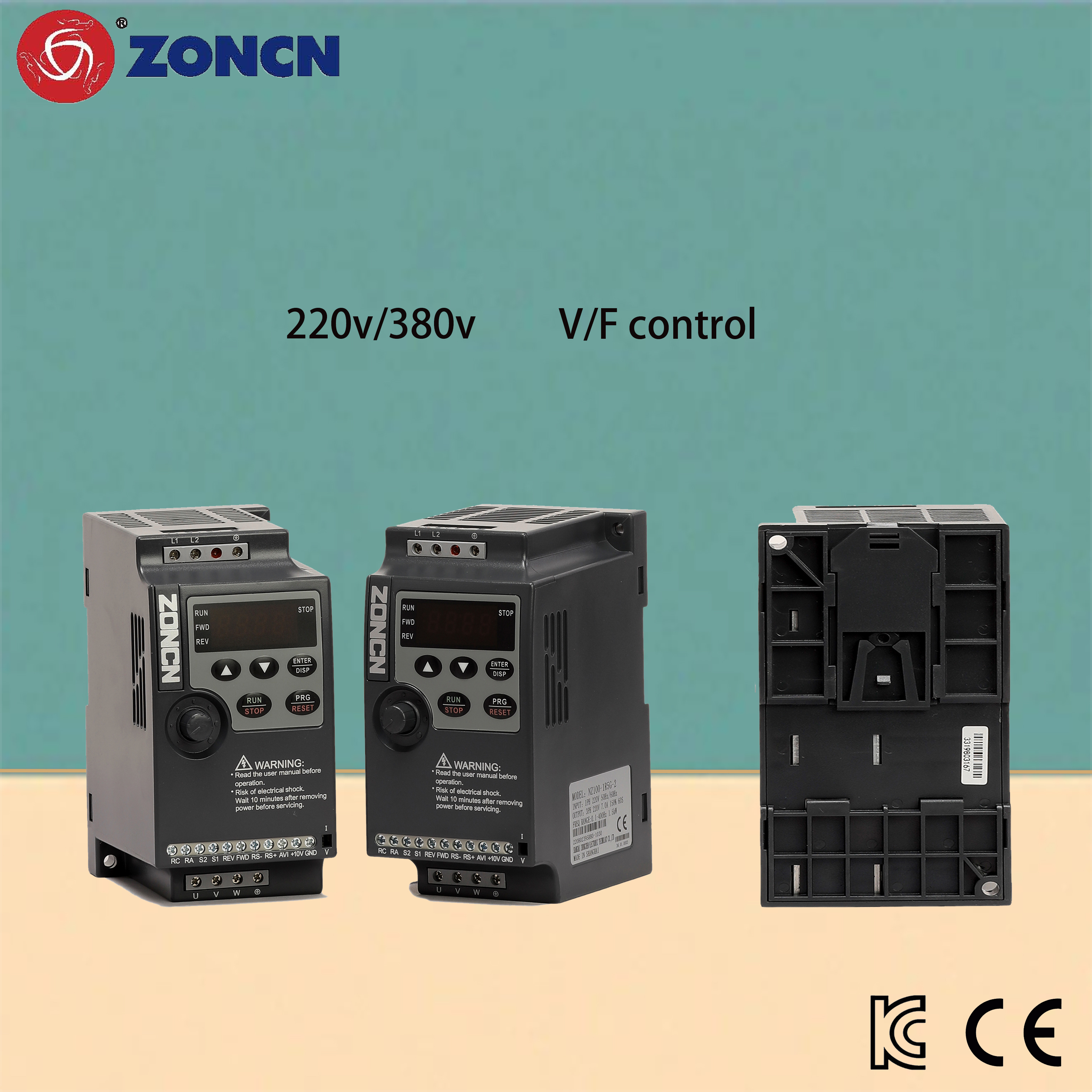

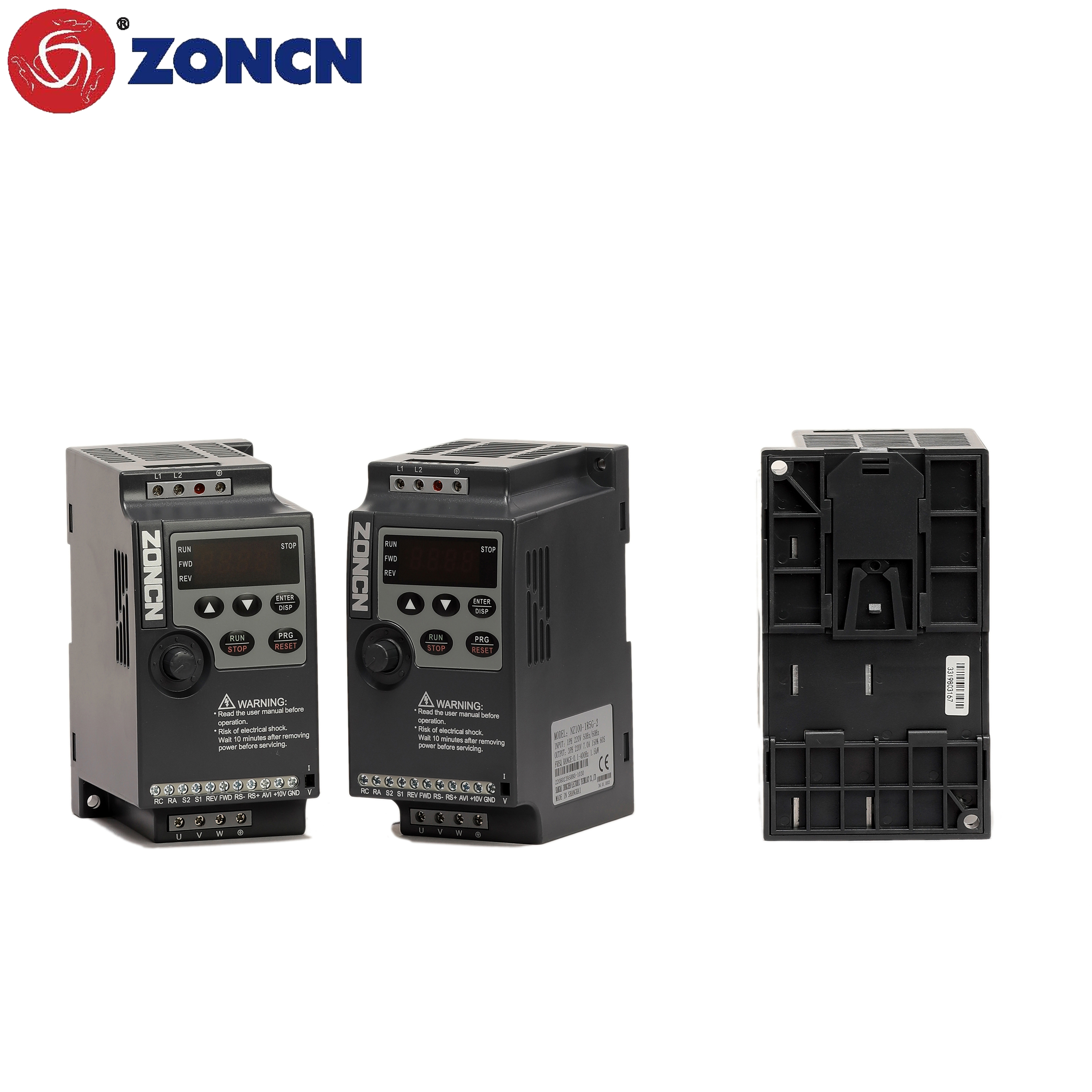

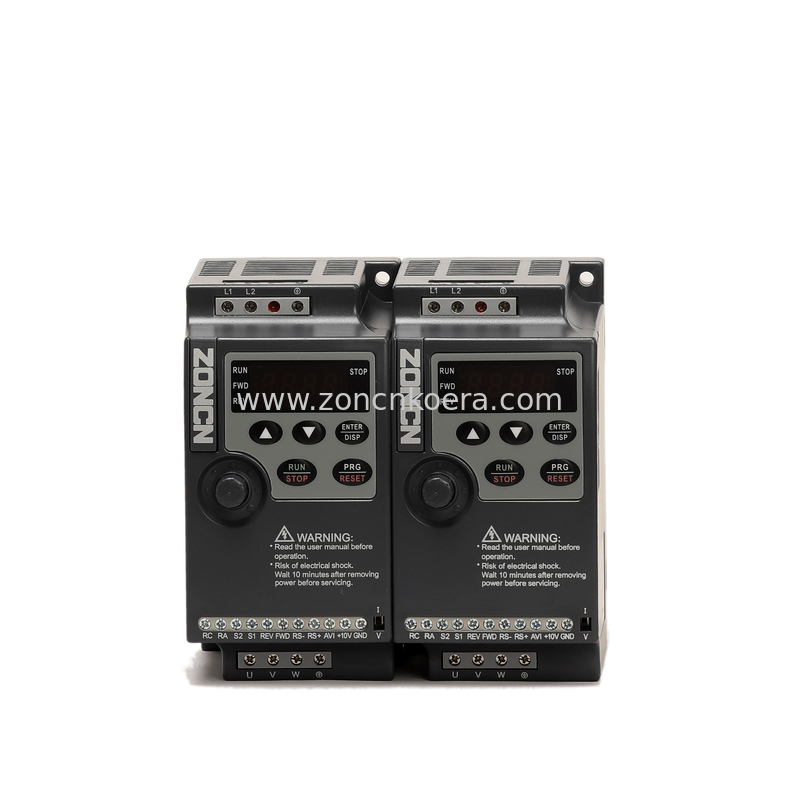

1.5KW Variable Frequency Drives Inverter Vfd Motor Speed Controller Micro VF Control

380V 1.5KW Mini Type VFD Inverter AC Converter

VFD Product Introduction:

The ZONCN NZ100 series frequency inverter VFD feature a simple design, stable performance, and a wide range of functions, making them an ideal choice for the variable frequency drive VFD of small and medium-sized industrial equipment. Their V/F control and Modbus communication capabilities can meet most basic speed regulation requirements, and the built-in PID and multi-speed functions further expand the application scenarios. For users who seek cost-effectiveness without the need for high-end vector control, the NZ100 series VFD is an optimal solution that combines reliability and economy.

Main Features :

- Micro-compact, Low cost;
- V/F control; Built-in PID control, output frequency range 0.1~400 Hz;
- Extreme compact size saves installation space;
- 35MM DIN-rail mounting and wall mounting speed up installation(Less than 5.5KW);
- Terminals uncovered, easy for wiring;
- Standard supports MODBUS via RS485, Maintenance-free;
- Pull out LED keypad optional (DP2-E-4);

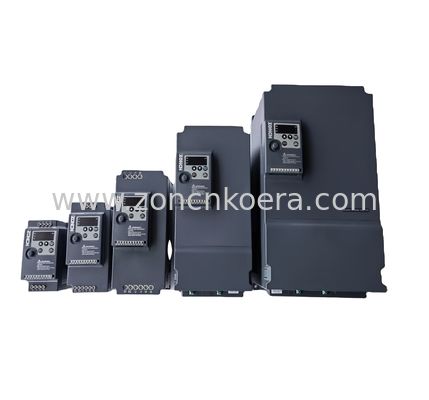

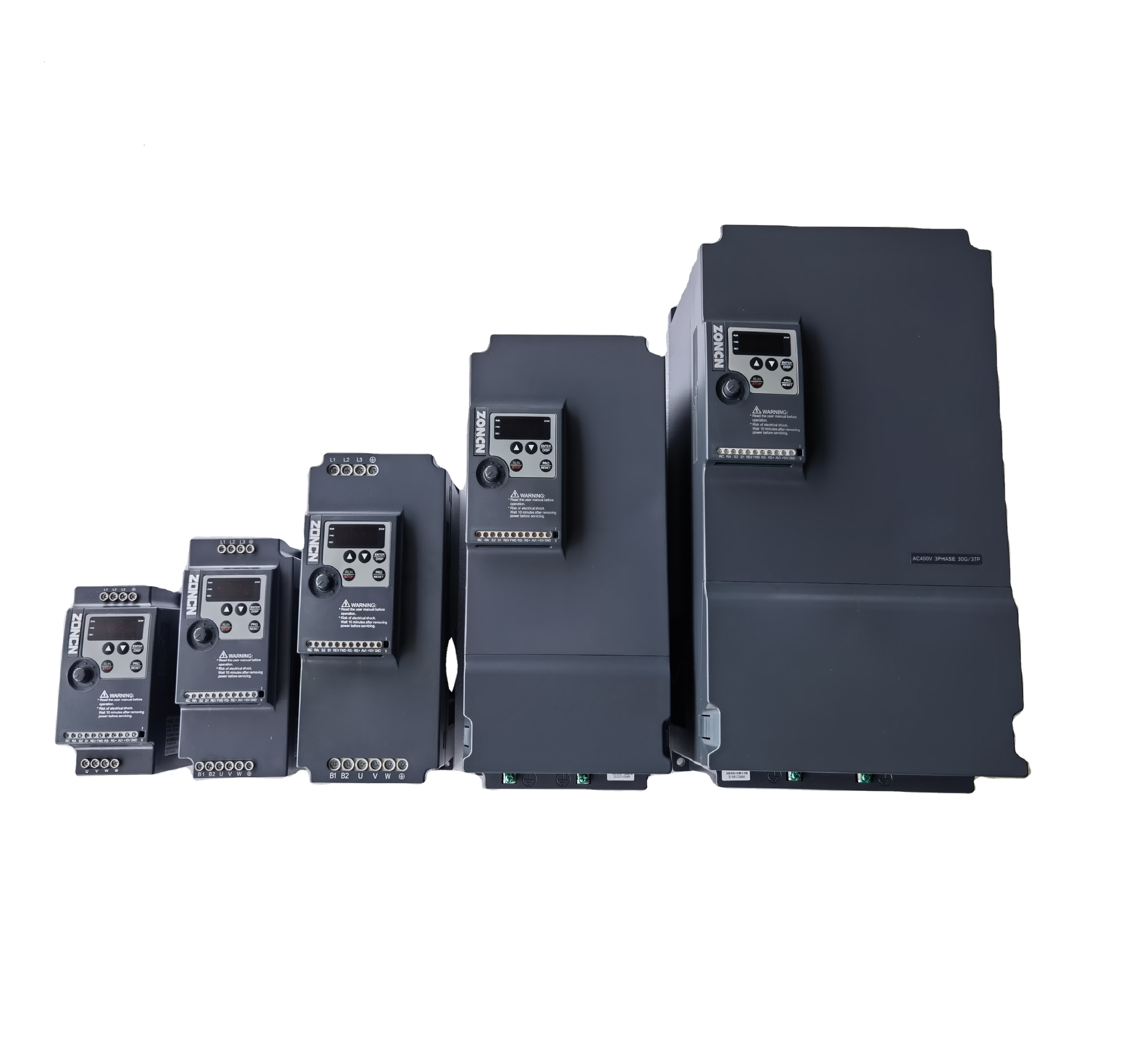

- 220V 0.4-3.7KW 380V 0.4-450KW;
- MODBUS RTU ; MODBUS ASCII;
- Application:It is used for situations with low load requirements, such as water pumps, fans, simple food machinery, wire drawing machines, conveyor belts, and so on.

Schematic diagram:

Company Profile:

Our main products include inverter and servo system.Our company has a wide range of products, with medium and low voltage inverters divided into two categories:general-purpose products and industry-specific products, covering voltage levels from AC 220V to 1140V, power range from 0.4kW-1200kW, and widely used in industries such as air compressors, plastic machinery, construction machinery, water supply equipment, metallurgical equipment, textile machinery, machine tools, chemical machinery, mining machinery, printing and packaging, etc. The servo system isdivided into two categories: synchronous servo driver and asynchronous servo driver covers voltage range from AC220V to 480V, power range from 0.4 kW to 132 kW suitable for various occasions requiring high-performance precision control.
